1.1. Related Work

In this section, we highlight various research articles related to thermal camera datasets and thermal facial expression recognition. We briefly summarise each paper and reflect on certain limitations or drawbacks of each approach, including how they could potentially be improved.

2.1. Participant Recruitment

Fourteen male participants, aged between 21 and 42, were recruited. They were either post-doctorate researchers or PhD students at the University of the West of Scotland in the UK. The participants hailed from various countries, including Scotland, England, China, Romania, and Pakistan. They were recruited through internal communications within the research group. The study received ethical approval from the University of the West of Scotland’s ethics board under project #18323. None of the participants wore glasses.

Each participant was assigned a specific date and time for data collection. Upon arrival, they were provided with the necessary information sheets and consent forms, which were signed before any exercises commenced.

In addition to recording age, gender, and nationality, participants were asked whether they had any known affective disorders or prior experience with tasks involving facial expression recognition. None reported any affective history or prior exposure to such tasks. While the participant pool consisted of individuals in a research setting, this background was not associated with specialised training in affective computing. These measures were taken to minimise potential selection bias and enhance the generalisability of the dataset within the scope of this exploratory study.

2.2. Stimuli

A series of video clips was selected by the authors to elicit spontaneous facial expressions, comprising 2 clips each for anger, fear, happiness, sadness, and surprise, and 9 clips for the neutral expression. Videos have been effective stimuli for eliciting a wide range of emotions [32,33]. Short videos, such as YouTube Shorts and TikTok, are extremely popular and were used to keep participants engaged [34].

The selection process was informed by prior work in similar thermal datasets such as KTFE [16] and NVIE [18], and validated through participant self-reports immediately following each video clip. In KTFE, the stimuli were selected by the authors based on cultural relevance, and participants self-reported their emotional responses using standardized scales. In NVIE, emotional videos were used to elicit spontaneous expressions, and self-reported responses were used to confirm the appropriateness of each clip, with mismatches excluded.

Similarly, we chose videos based on cultural relevance and public viewer comments indicating strong emotional responses. After each clip, participants reported how the video made them feel, and only clips where the intended emotion was confirmed by participant feedback were retained in the dataset. While most emotions during spontaneous elicitation were successfully captured—particularly happiness and surprise—some emotions proved more difficult to evoke, as also reported in previous work [35].

For the posed facial expression data, emoticons representing each facial expression were displayed to prompt participants. Rather than imitating the emoticons directly, participants were asked to produce expressions that felt natural to them for each emotion category. Emoticons were selected for their simplicity and cultural familiarity, which have been shown to support intuitive emotional interpretation and expression [36].

2.3. Equipment

A TOPDON TC001 thermal camera was used in this study to collect thermal images. The TC001 operates in a spectral range of 8-14 micrometres and has a resolution of 256 × 192 pixels. The camera can record at a rate of up to 25 frames per second and has a temperature range of −20 to 150 degrees Celsius with a temperature accuracy of ±2 degrees Celsius. The camera also features a Noise Equivalent Temperature Difference of 40 milli-Kelvin at 25 degrees Celsius and operates with a power consumption of 0.35W. The TC001 weighs 30 g and measures 71 × 42 × 14 mm.

The camera was connected to an ASUS Vivobook laptop running Windows 11, which had the TCView software installed. A table was used to place the laptop, and a 50-inch Samsung TV was used to show video clips and images of the emoticons. A tripod was employed to hold the camera in position, and a traditional office chair was provided for participants to sit on.

2.4. Environment Setup

The data was collected inside a lab at the University of the West of Scotland. The room was an approximately 24 square metre L-shaped area, featuring four windows on one wall and five windows on the other side. The room was not empty, as there were various desks with computer monitors situated around the perimeter. A small 3 × 3 metre area in the room was used as the data collection area, the arrangement of which can be seen in Figure 1.

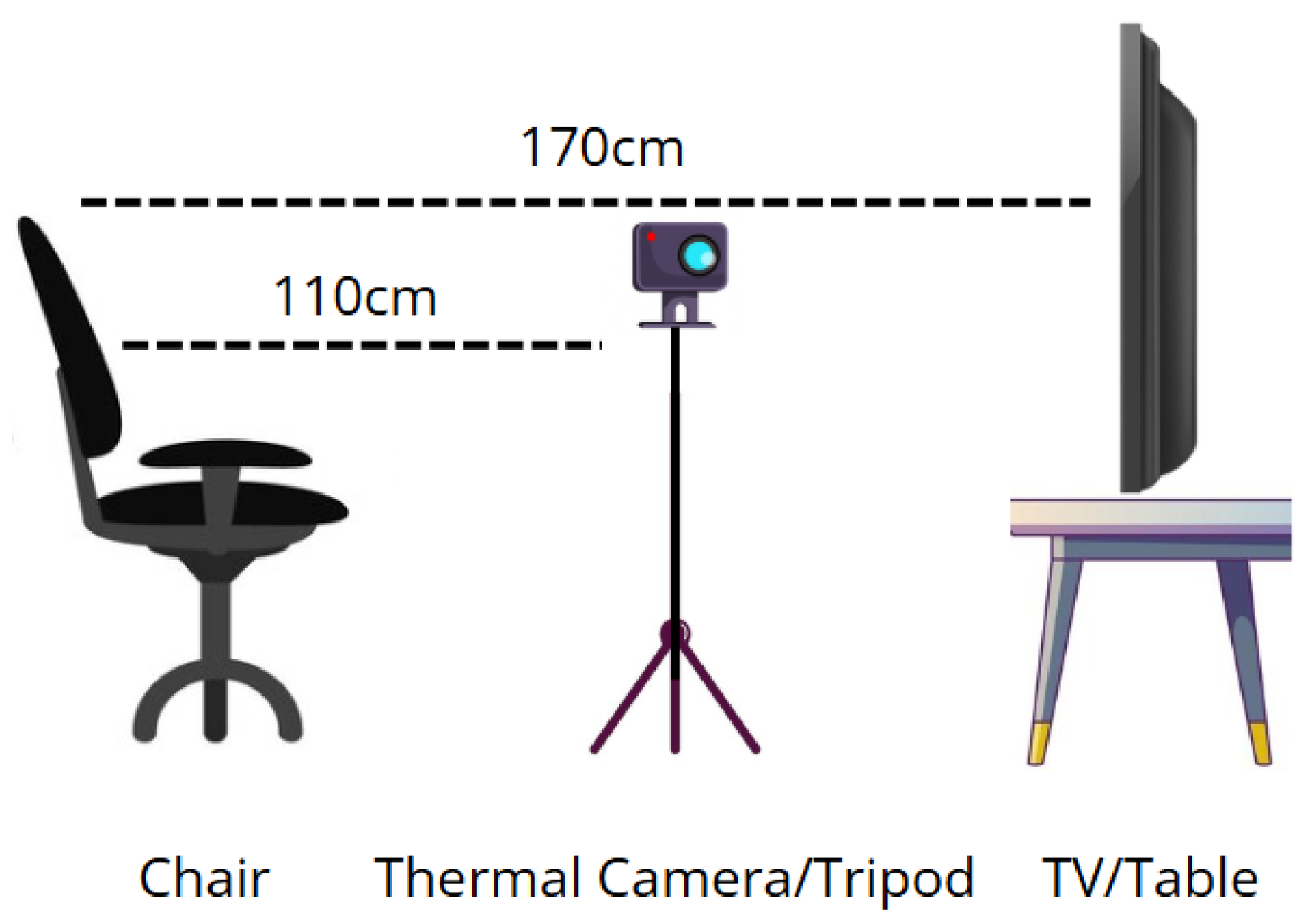

To ensure participant discretion and comfort, data collection was conducted in a dedicated and quiet section of the lab with minimal distractions. The 3 × 3 metre area used for recording was positioned away from windows and foot traffic. Blinds were drawn during data collection to reduce visual distractions and control natural light. Only essential personnel were present, and no observers were in the direct line of sight of participants. Participants were seated alone during recordings and instructed to behave naturally, with the assurance that there were no ‘correct’ emotional responses. They were also informed that they could withdraw at any time without consequence. Room temperature and lighting conditions were kept consistent across all sessions to avoid external influences on emotional expression. The thermal camera setup was non-intrusive, and no visible facial markers or physical contact were used to preserve a neutral and comfortable environment.

2.5. Protocol

Spontaneous and posed facial expressions were collected as part of this study. Before the collection began, each participant was given information about the process and the option to opt out at any time. First, using the TC001 camera recording at 25 frames per second, spontaneous emotions were collected. This involved participants watching 19 short video clips, presented in a random order, on a TV with the camera placed between the TV and the participant. Starting with a sad short video followed by a neutral clip, this pattern continued by first playing a short video that elicited an emotion other than neutral, followed by a neutral video clip, an approach taken by [18] to help alleviate any negative feelings. After each short video clip, the participant reported how that clip made them feel from the six emotions: anger, fear, happiness, neutrality, sadness, surprise, or other. This is a similar approach to that taken by [16]. Once all short videos were watched and emotions were reported, the video recording of the participant was stopped.

After the spontaneous collection was complete, participants were asked if they were comfortable proceeding to the posed collection activity, to which all responded affirmatively. To record the posed emotions, the same setup was used as in the spontaneous collection, with the TC001 recording. However, instead of playing video clips, the participant was asked to mimic the emoticon displayed on the TV. The participants were asked to mimic each posed expression in a random order, three times for three seconds each, reverting to a neutral pose between expressions. After the posed data collection was complete, each participant was debriefed to ensure that they were not affected by any of the materials used to induce the emotions. None of the participants reported feeling any adverse effects, concluding the data collection process.

2.6. Dataset Curation

Separate thermal video recordings were created for each emotion-eliciting clip, allowing individual emotional responses to be evaluated in isolation. After data collection was completed, the recordings were saved in MP4 format and prepared for frame extraction. This separation ensured that only frames corresponding to a specific emotional stimulus were considered during the annotation process. We adhered to the following process when collecting the data:

• Start video clip

• Start thermal recording

• Stop the video clip

• Stop thermal recording

• Collect participants’ self-reported emotions

To create the thermal facial expression dataset, each spontaneous and posed video recording was exported into individual frames in JPG format using the OpenCV library in Python [37]. The selection process was performed manually by the authors, as shown in Algorithm 1. Every frame was reviewed and evaluated based on the participant’s self-reported emotion following each video clip, as well as visible facial cues in the thermal image, such as changes in the cheek, eye, or mouth regions. Only frames that reflected the intended emotional state were included in the dataset.

This manual annotation process follows similar practices in thermal FER literature. For example, Kopaczka et al. [23] performed manual frame selection and verified annotations through expert agreement, while the KTFE dataset [16] relied on participant self-reports and controlled experimental protocols to guide the inclusion of expression samples. Each selected image was then assigned to a directory corresponding to one of six emotion classes and prepared for preprocessing.

As a result, a total of 61 images for anger, 130 images for happiness, 97 images for neutrality, 92 images for sadness, and 178 images for surprise. Figure 2 shows an example of each expression from the exported frames.

2.7. Preprocessing

Various steps were taken to prepare each image in the dataset for model training. First, a Python script was created in which the images were loaded from the directories previously created during the dataset curation step using the OpenCV library [37]. Next, a pre-trained Haar Cascades classifier was used on each image to detect whether a face was present. As expected, due to the manual diligence in the dataset curation step, a face was successfully found in each image.

Using the coordinates of the face’s position identified by the Haar Cascades model, the face was cropped from each image, the remaining background was removed, the image was converted to greyscale, and finally normalised. The image was then resized to 48 × 48, which are common dimensions for many types of image classification tasks, as it is large enough for models to pick up nuances and small enough to be efficient for the training stage and inference. The image channels were then merged to ensure it had three channels, as this format is required by certain models. Finally, the dataset was split into training, validation, and testing sets using a 60/20/20 ratio.

2.8. Convolutional Neural Network

Convolutional Neural Networks (CNNs) are deep learning models primarily used for structured grid data, such as images, using a series of layers that include convolutional layers, pooling layers, and fully connected layers [38]. CNNs employ kernels in the convolutional layers that slide over the input data to extract local features, which are crucial for the model in recognising patterns in images. These fixed patterns can be a limitation of the CNN model, but they save training time as the model doesn’t need to learn how to focus.

This process is followed by activation functions, typically Rectified Linear Units (ReLU), which introduce non-linearity into the model, enabling it to learn complex patterns. To reduce the spatial dimensions of feature maps, pooling layers are used, often employing max pooling or average pooling. These layers decrease the computational load and help prevent overfitting. This hierarchical structure enables CNNs to learn increasingly abstract features with each layer, from simple edges in the initial layers to more complex shapes and objects in the deeper layers [39].

CNNs have gained prominence in facial expression recognition due to their ability to learn features from facial images without the need for manual feature extraction, which was a limitation of traditional machine learning methods. The architecture of CNNs allows them to effectively capture both low-level features, such as basic textures and edges, and high-level features, such as facial expressions. Recent advances in deep learning have significantly improved the performance of facial expression recognition models, enabling them to operate effectively in challenging conditions such as variations in lighting, head pose, and angles [40].

To further enhance the performance of CNNs, some approaches leverage transfer learning, where pre-trained CNN models are fine-tuned on facial expression recognition datasets, allowing for better generalisation and performance on new data [41]. In general, CNNs combine their robust feature extraction capabilities with advanced training techniques to achieve high accuracy and reliability, representing a powerful tool for recognising human emotions from facial expressions. In this work, we fine-tune the ResNet50 pre-trained model [13] using the Keras deep learning API [42].

2.9. Vision Transformers

The introduction of the transformer model [43] has significantly influenced natural language processing and has recently advanced into vision and multimodal applications. In recent years, state-of-the-art image classification has been dominated by CNNs until the introduction of vision transformer (ViT) models. Unlike CNNs, which rely on local receptive fields and hierarchical feature extraction, ViTs utilise a self-attention mechanism. This mechanism allows the model to capture global dependencies across the entire image by dividing the image into patches, which are then linearly embedded into a sequence of tokens for the transformer to process [6]. The self-attention mechanism enables the model to assess the importance of different patches, facilitating a better understanding of spatial relationships and contextual information within the image.

ViTs have shown promising performance in the field of facial expression recognition, specifically in challenging scenarios such as varying lighting conditions and occlusions. The authors in [44] present TFE (Transformer Architecture for Occlusion Aware Facial Expression Recognition), demonstrating that transformers can effectively manage occlusions by focusing on relevant facial features while ignoring irrelevant background noise. Additionally, although different types of ViT models exist, Li et al. [45] employs the Mask Vision Transformer (MVT) model, which incorporates a mask generation network to filter out complex backgrounds and occlusions, a technique that further enhances the model’s robustness, especially for facial expression recognition in the wild.

Moreover, ViTs address the limitations inherent in CNNs. Traditional CNNs rely on local features and often struggle with fixed-size input requirements [46]. The global receptive field of transformers allows them to learn more comprehensive representations of facial expressions by utilising positional embeddings, enabling the model to capture nuances within the data in unexpected ways. However, this comes at a cost: the training time increases, and larger amounts of training data are required, resulting in high computational resource demands. Research using ViT models for thermal facial expression recognition is not as prevalent as work involving CNNs. In this study, the aim is to address this gap by comparing the performance of a modified ViT model described in [15], herein referred to as the modified ViT, designed for training on smaller datasets utilising the Keras API, and fine-tuning on a pre-trained ViT model developed by researchers from Google [14] using the Hugging Face platform [47].

3.1. Feature Extraction

To evaluate the performance of the CNN architecture, the feature extraction process utilised the pre-trained ResNet model’s convolutional layers as a foundational component. This approach processes input images by leveraging the model’s pre-trained weights on the ImageNet dataset [48]. The output of the convolutional layers captures high-level abstract representations of the input images, which are then passed to subsequent layers for further processing. These layers focus on feature refinement and classification based on the extracted features. Some studies have shown that using regions of interest can enhance the performance of CNNs [49], while other work emphasises the importance of using the entire face to capture temperature changes across the facial surface [50].

The pre-trained ViT model developed by Google extracts features following the standard architecture of the model. First, it divides the input image into non-overlapping patches of 16 × 16 pixels. Patch embeddings are created by flattening each patch before linearly projecting it into a vector. Positional embeddings are added to the patch embeddings to incorporate spatial information. These embeddings serve as input tokens for the Transformer, where the core feature extraction occurs within the Transformer encoder, which comprises several layers. To capture intricate relationships between patches, each layer features multi-head self-attention, a feed-forward neural network (Multi-Layer-Perceptron) for non-linear feature extraction, and layer normalisation to stabilise the network, resulting in a sequence of rich token embeddings.

The modified ViT model also follows the standard architecture of the model in the feature extraction process; however, it implements further customisations. For instance, it tokenises patches using shifted patch tokenisation, whereas the Google model utilises a simpler patch embedding mechanism based on fixed-size non-overlapping patches. Furthermore, the Google model relies on standard multi-head attention, whereas the modified model introduces a trainable temperature parameter to scale the query vectors, providing more flexibility compared to the standard multi-head attention mechanism. Despite these variations, both ViT models utilise the transformative power of attention mechanisms to capture complex relationships for effective feature extraction.

3.2. Evaluation Metrics

To evaluate the effectiveness of the models, the following performance metrics were included: accuracy, precision, recall, and F1 score. Confusion matrices were also utilised to provide insights into accuracy and error patterns across the different emotion categories.

• Accuracy—a straightforward metric that offers an overall sense of model performance by measuring the proportion of correctly classified instances over the total number of instances.

• Precision—a metric that reflects the model’s ability to identify positive samples correctly by measuring the ratio of true positive instances to the sum of true positive and false positive instances.

• Recall—a metric that evaluates the model’s capability to capture all relevant instances by measuring the ratio of true positive instances to the sum of true positive and false negative instances.

• F1 Score—a metric that balances the importance of precision and recall by measuring the harmonic mean of precision and recall.

3.3. Comparison of Model Training

To train each model, the data was split into 60/20/20 for training/validation/testing. Each model underwent 200 epochs of training; however, early stopping callbacks were implemented to prevent overfitting. These callbacks were based on the evaluation of accuracy and loss from the training and validation data and included a function to reduce the training learning rate when a plateau was detected.

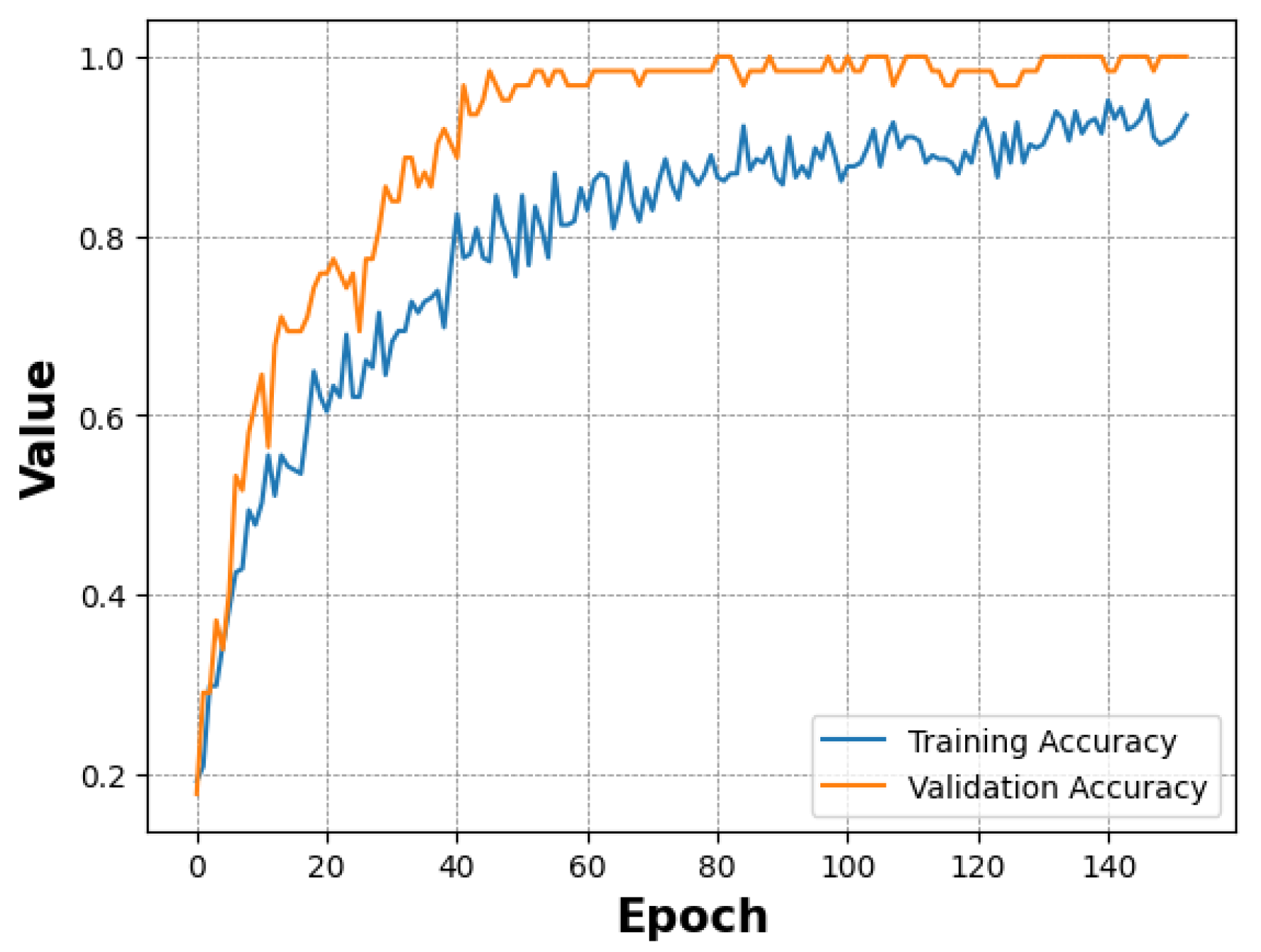

Starting low but gradually increasing over time, the training process for the ResNet model lasted for 125 epochs before stopping early. Figure 3 illustrates that the validation accuracy initially surpassed the training accuracy, suggesting effective generalisation to the validation data.

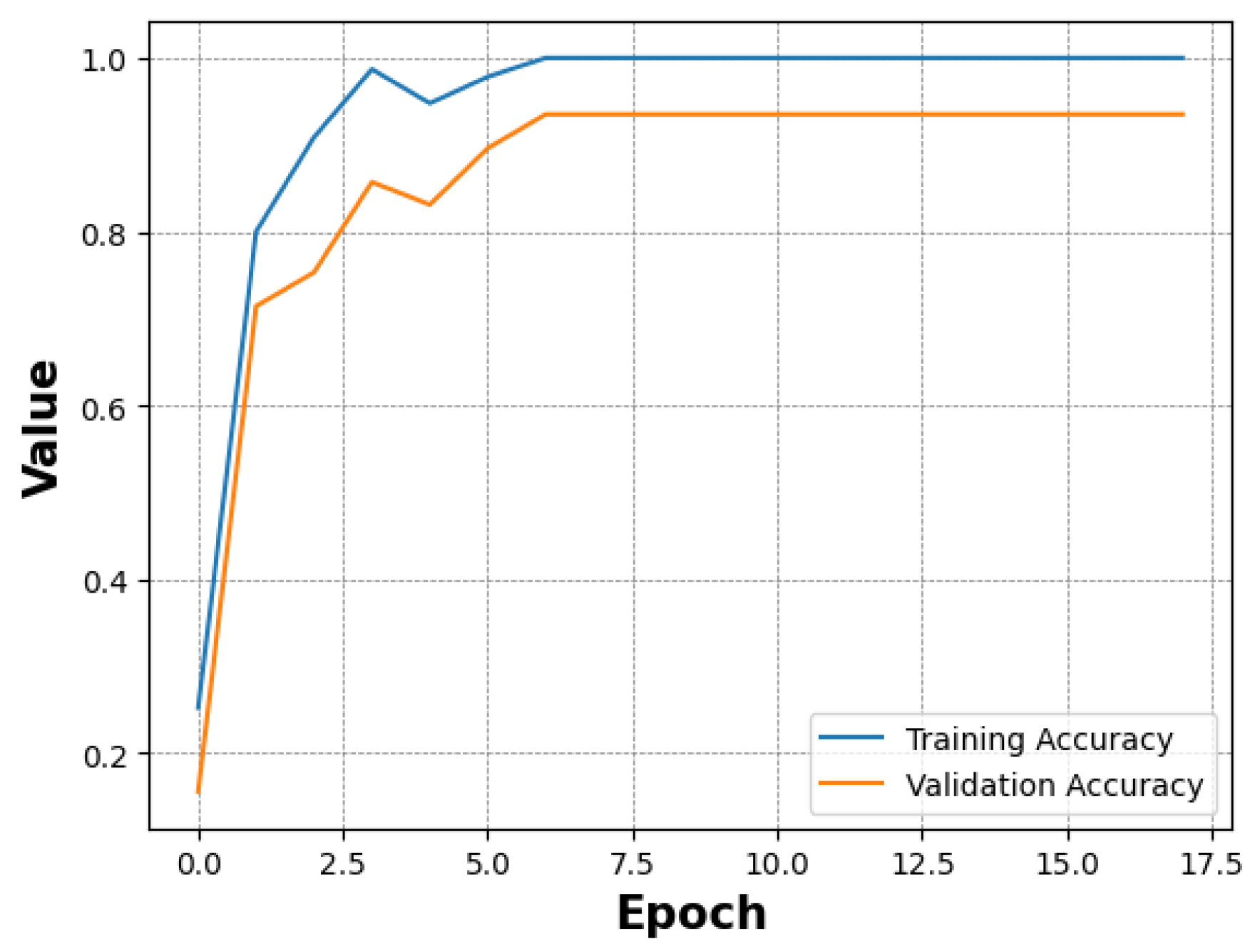

The ViT model by Google exhibited a rapid learning process, as shown in Figure 4, achieving near-perfect accuracy in just a few epochs. In contrast to the ResNet model, the training accuracy exceeded the validation accuracy early in the training process, although both followed similar trajectories thereafter. This indicates that the model learned quickly and overfitted the training dataset, suggesting that the early stopping patience was insufficient to prevent overfitting. However, the validation accuracy was still respectable, highlighting the model’s generalisation capabilities.

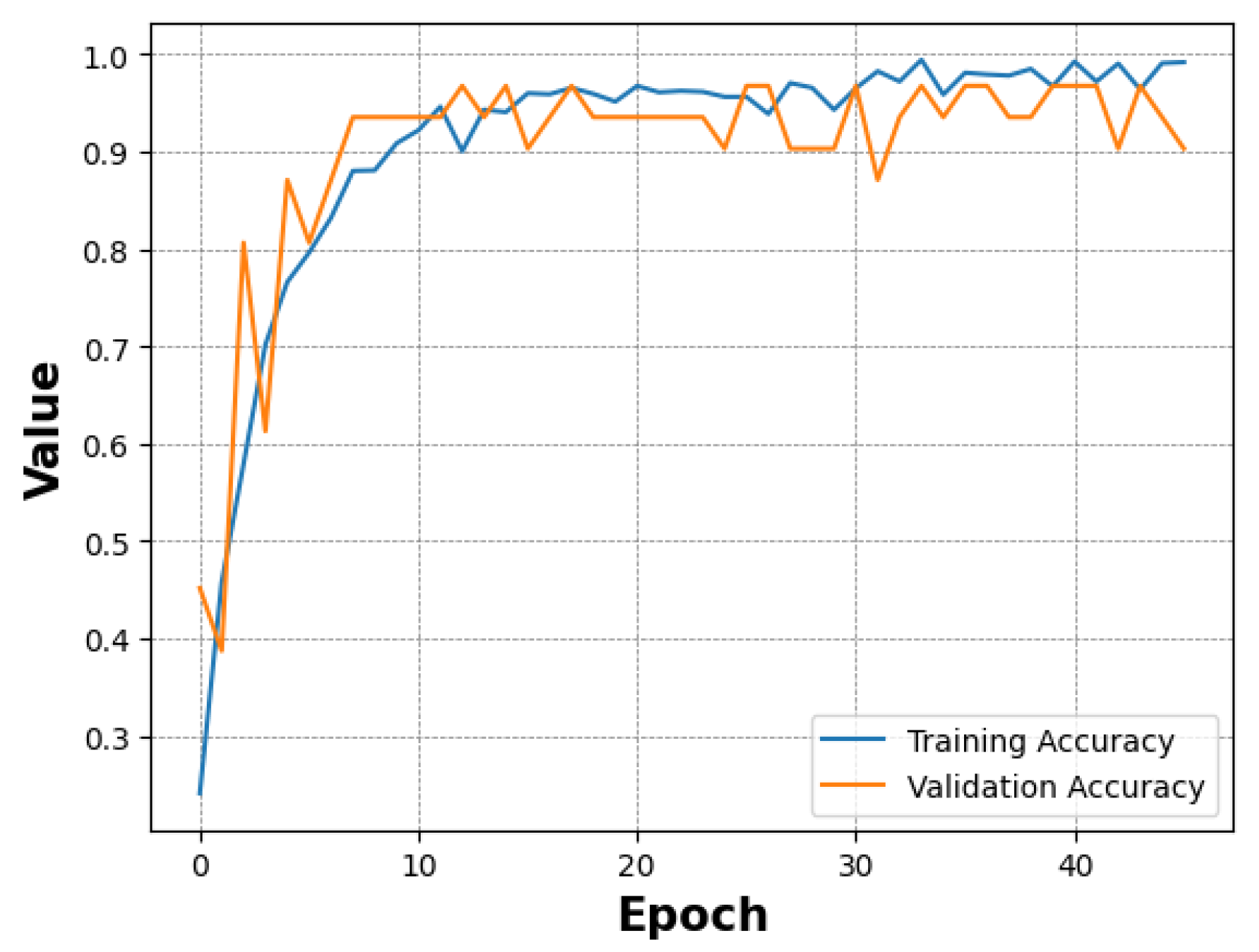

Figure 5 shows the modified ViT model, which demonstrated a swift learning process, terminating training early at 46 epochs. Despite minor fluctuations, both training and validation accuracies stabilised early and maintained high accuracy, indicating efficient generalisation and adaptation.

In general, each model showed different behaviours in the training process, highlighting their unique characteristics and learning speeds. Notably, the ViT models managed to learn in far fewer epochs than the ResNet model.

3.4. Comparison of Model Performance

After the training process, the models’ performance was evaluated using the test data from the training dataset split, with results reported using the metrics described in Section 3.2. Macro averages were used to provide insights across class distributions. The results are summarised in Table 2 while Table 3 shows the results of each model at a more granular level for each class.

The ResNet model demonstrated high accuracy at 95. The precision reached 92, indicating a respectable rate of true positive predictions. Recall was slightly higher at 96, suggesting that the model effectively identified the majority of positive instances, resulting in an F1 score of 94.

The model achieved perfect scores when predicting Fear and Surprise; however, it showed some limitations in classifying Neutral and Anger emotions. Although precision and F1 score for the Anger emotion were high, the recall was comparatively lower at 86. In contrast, for the Neutral emotion, precision was relatively low, but both the F1 score and recall were high. Similarly, although precision was high for the Sad emotion, it was the lowest scoring metric with a high F1 score and perfect recall.

The ViT model by Google achieved slightly higher accuracy than the ResNet model, reaching 96. The model also achieved considerably more precision at 96. Finally, with a recall of 95, the model maintained effective detection capabilities, albeit slightly less sensitive than its precision, culminating in an F1 score of 95. Unlike ResNet, this model managed to identify the Anger and Happy emotions with perfect precision, recall and F1 scores. Performance deteriorated when identifying Fear and Neutral classes, although metrics still remained high. For the Sad emotion, the model presented excellent precision of 100 and a respectable recall and F1 score, and when predicting Surprise, the model performed exceptionally well, closely approaching perfect scores.

The modified ViT model excelled and surpassed ResNet and Google ViT in almost all metrics. Although the same accuracy score was achieved as the model by Google, the modified ViT achieved 97 for precision, demonstrating a higher proportion of correct positive predictions. Its recall matched the accuracy score of 96, resulting in an F1 score of 96, marking the modified ViT as the top-performing model in our comparison. Similar to ResNet, this model achieved perfect scores for the Surprise and Fear classes, while detecting Anger was also near-perfect, with an F1 score of 92. The model experienced some challenges with the Happy emotion, where model precision and F1 score were lower despite a perfect recall score. This model achieved the highest precision for Neutral, yet recall slightly lagged, resulting in an F1 score of 90. This was similar to the Sad emotion; however, recall was higher, which resulted in an F1 score of 97.

In summary, while all models exhibited high performance across metrics, ResNet showed strong general performance, particularly for Fear and Surprise classes, while the ViT by Google excelled with Anger and Happy recognition. The modified ViT revealed areas for improvement but demonstrated impressive precision for Surprise and Sad emotions. The modified ViT outperformed the others, particularly excelling in overall precision and F1 score, underscoring its efficacy in thermal emotion classification.

3.5. Model Generalisation

In our study, we evaluated the generalisation capabilities of thermal emotion classification using learning curves—a method that provides insight into a model’s performance as the training dataset size gradually increases [51]. We tested our models on different portions of the dataset, ranging from 50% to 100%. Our evaluation focused on two scenarios: using only the KTFE dataset and using a mixed dataset comprising KTFE test samples alongside a 20% test split from our own collected dataset.

For the KTFE dataset, 90 samples were selected as a fixed test set across all generalisation experiments. The remaining 359 images were used for training, with subsets ranging from 50% to 100% of the available training data. The KTFE dataset contained 449 images. In the mixed dataset configuration, an additional 106 test samples from our dataset were included alongside the KTFE test items and these test sets remained unchanged across all training set size comparisons. To ensure reproducibility and consistent evaluation, a fixed random seed (42) was used during preprocessing.

Although some models showed signs of overfitting during training, early stopping was implemented based on validation accuracy and loss, and the best-performing model checkpoint in the validation set was restored for evaluation.

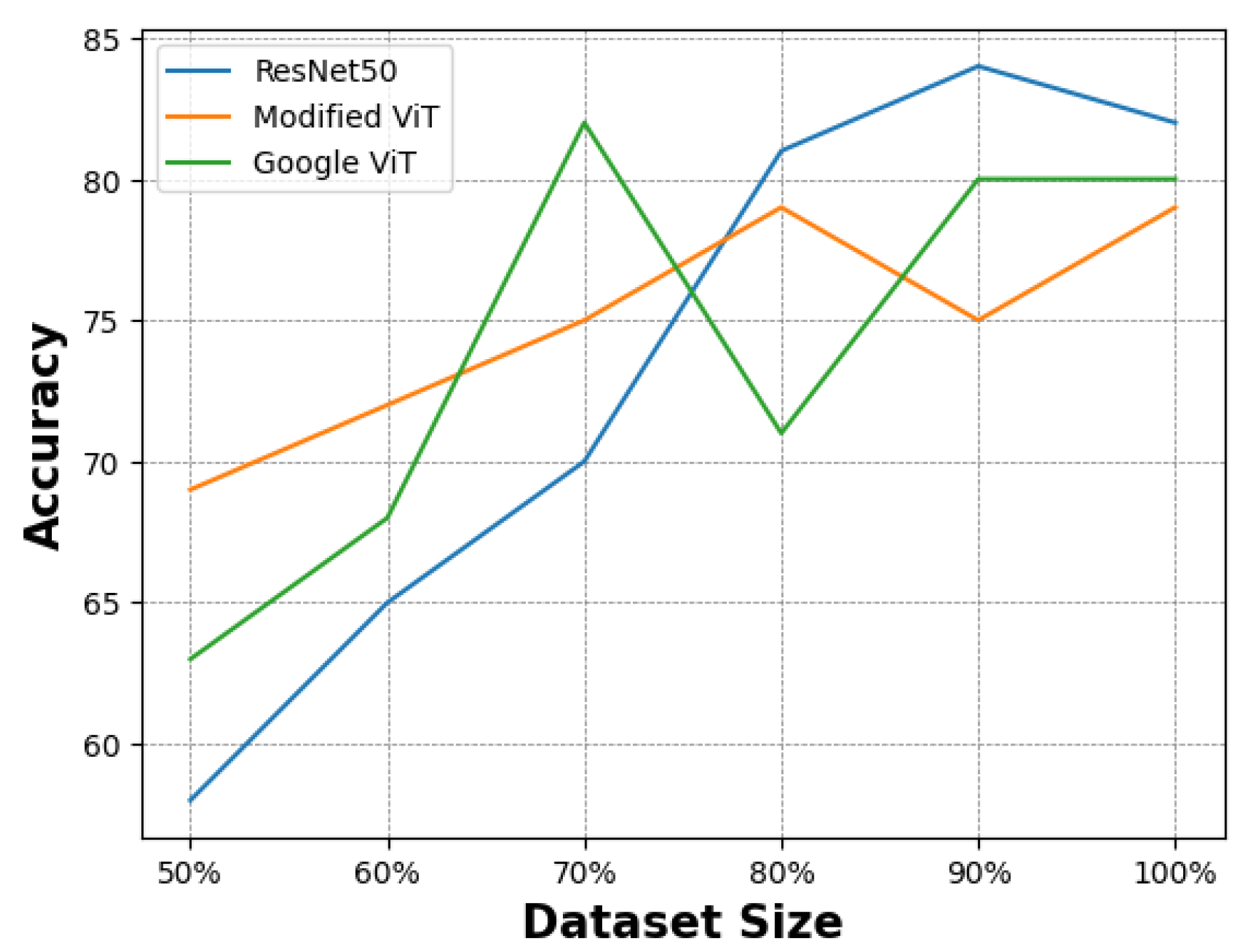

As shown in Figure 6, the ResNet model achieved an initial accuracy of 58% when half of the KTFE dataset was utilised, which increased steadily as more of the training data were incorporated, eventually peaking at 84% with 90% of the dataset—the highest accuracy recorded for the KTFE test data—before dropping slightly to 82% when the complete dataset was utilised. Figure 7 shows, in contrast, testing accuracy on the hybrid dataset remained consistently around the high 80s and 90% mark, starting at 89% when using 50% of the data, suggesting strong model generalisation capabilities.

The Google ViT model’s results displayed in Figure 6 fluctuated when testing on the KTFE dataset, starting at 63% accuracy before sharply increasing to 82% when using 70% of the dataset as part of the training data. This was followed by a slight decline in performance, which then stabilized at approximately 80% as larger portions of the dataset were utilized. In the mixed testing data shown in Figure 7, the model started with an impressive 88% accuracy using only 50% of the KTFE dataset in the training data before reaching a high of 94% with 70% of the training data used—the highest accuracy recorded—followed by a slight decrease in performance but remaining above 88%.

When using the modified ViT model, accuracy on the KTFE test set started at 69% with 50% of the KTFE dataset used in the training data before peaking at 79% when using 80% of the data, then dropping slightly as seen in Figure 6. In the mixed test set shown in Figure 7, the model showed a strong initial accuracy of 87% with 50% of the KTFE training data included, and the accuracy continued to vary across the different dataset sizes while remaining above 80%. The model peaked at 88% when the full dataset was used during the training process.
